SAKA TECHNO VENTURES PVT. LTD. is a trusted name in India for the supply and installation of Fire Rated Doors, Hollow Metal Doors, Wooden Fire Rated Doors, Glass Fire Rated Doors, Clean Room Doors, and Electric Shaft Doors — all compliant with required Government Certifications and Fire Safety Standards.

Our products are manufactured and supplied in accordance with relevant IS standards, fire safety norms, and statutory compliance requirements, ensuring reliability, durability, and maximum fire protection for commercial, industrial, and residential projects.

We provide certified fire door solutions with:

✔ Government Approved & Certified Products
✔ Fire Rating Options – 30, 60, 90 & 120 Minutes
✔ Compliance with National Building Code (NBC) Guidelines
✔ Tested & Quality-Assured Materials
✔ Professional Installation & AMC Support

With years of expertise and a strong execution team, SAKA TECHNO VENTURES PVT. LTD. delivers safe, durable, and regulation-compliant door systems across India.

DOORS

Our Products
✔ Fire Rated Steel Doors
Certified and tested doors designed for maximum fire resistance and safety compliance.

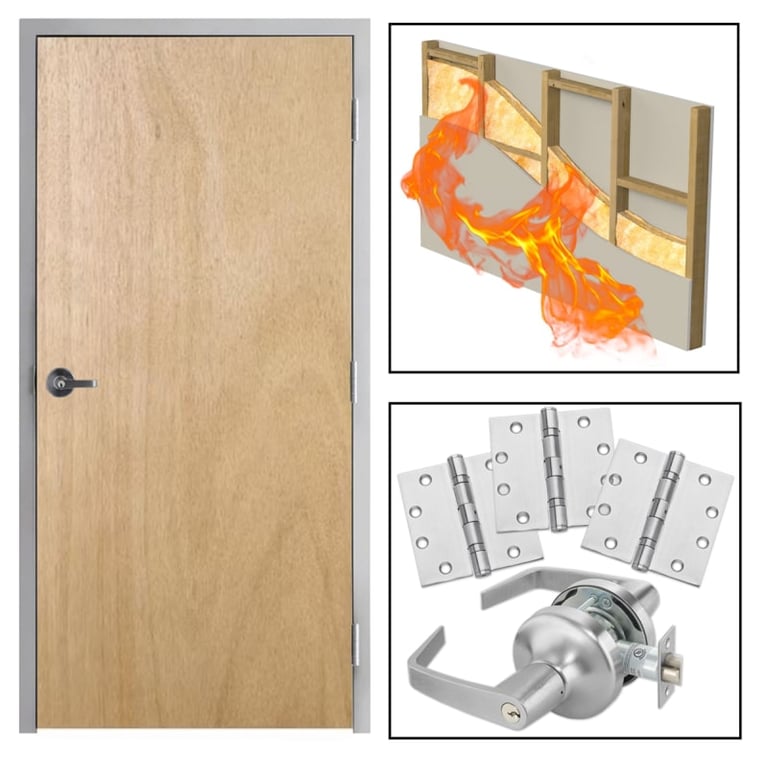

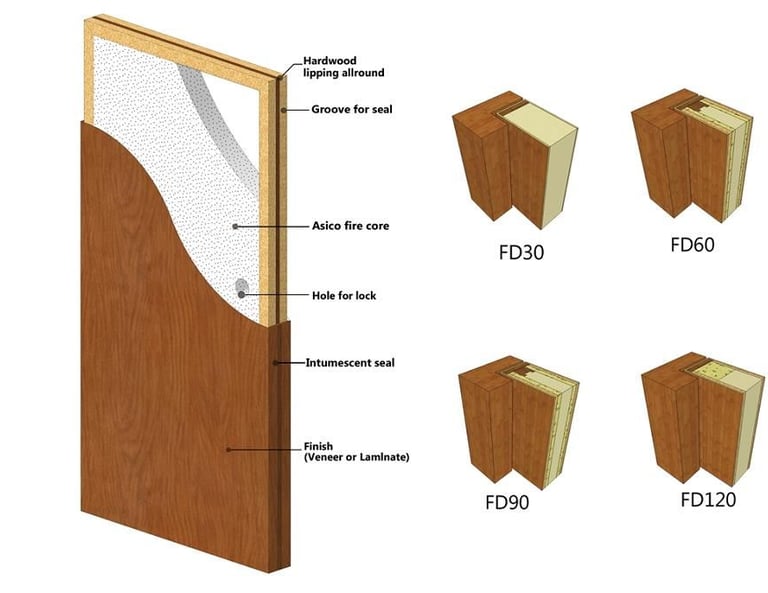

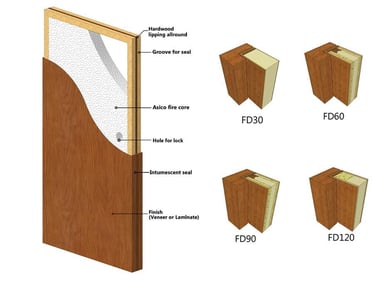

✔ Wooden Fire Rated Doors
Engineered wooden doors with certified fire rating and premium finish.
✔ Hollow Metal Doors
Strong, durable, and suitable for industrial and commercial applications.

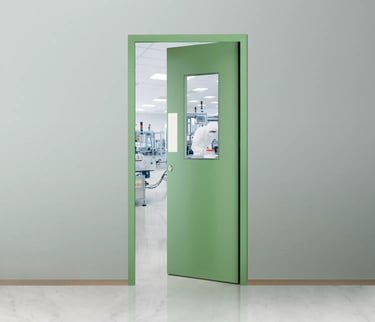

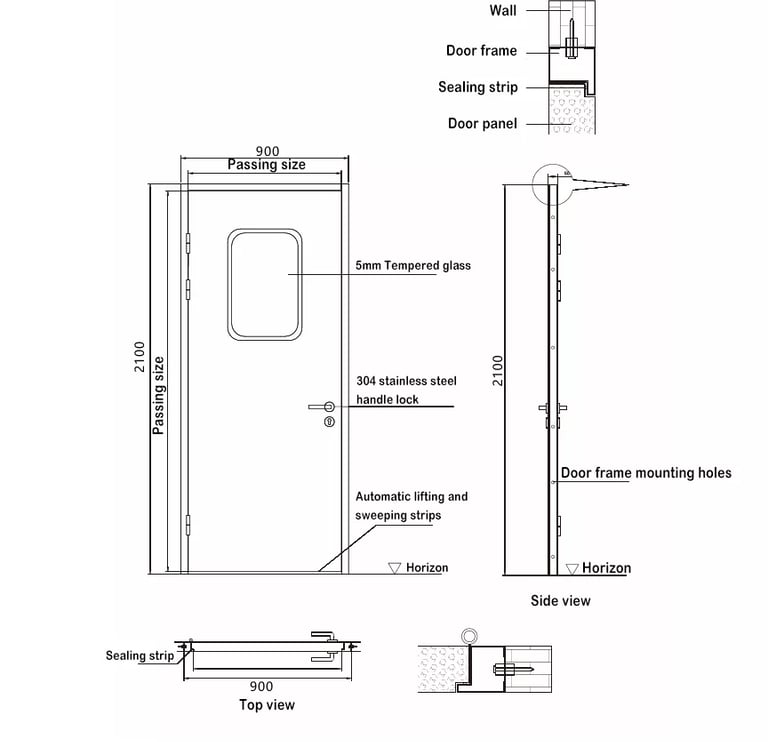

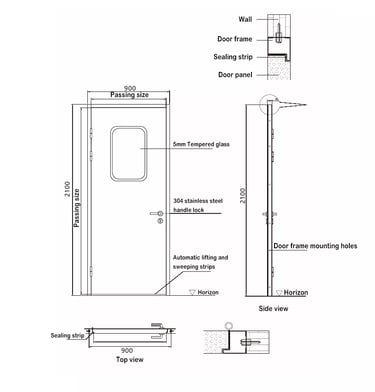

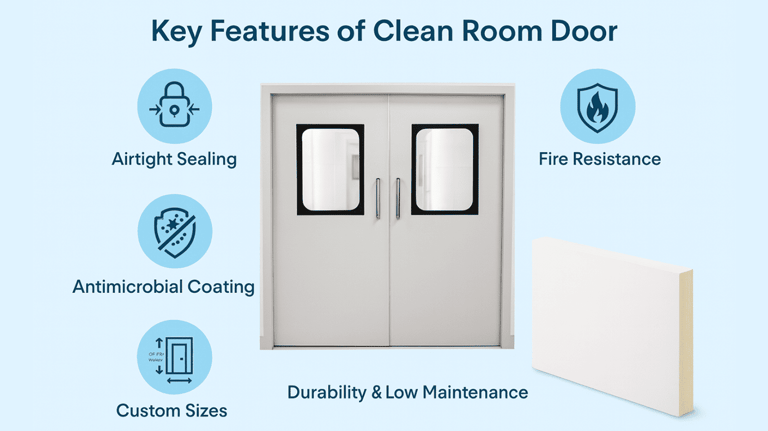

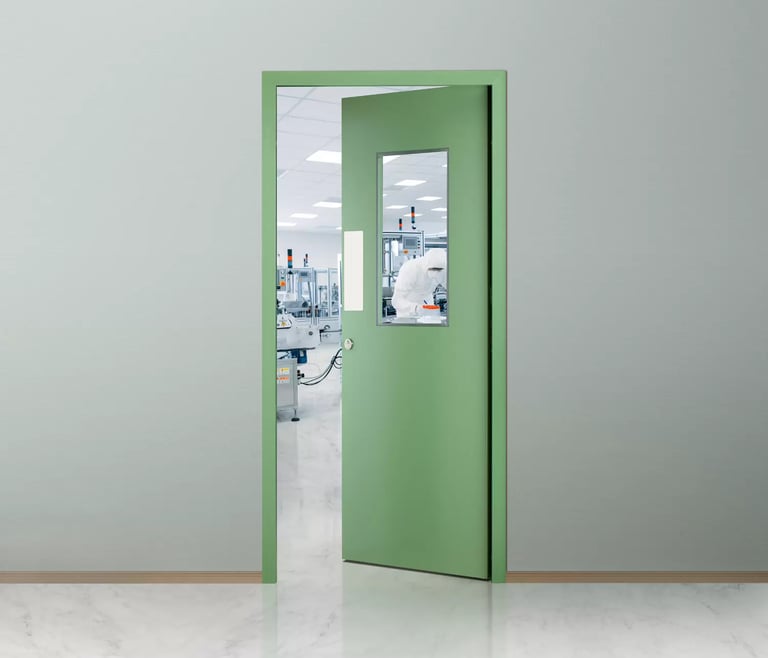

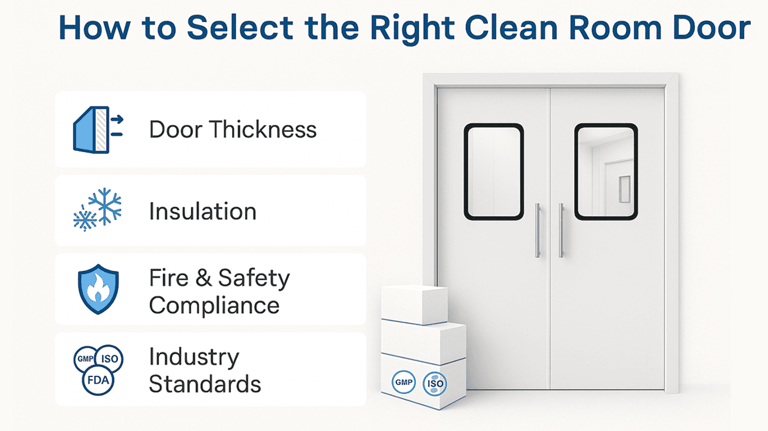

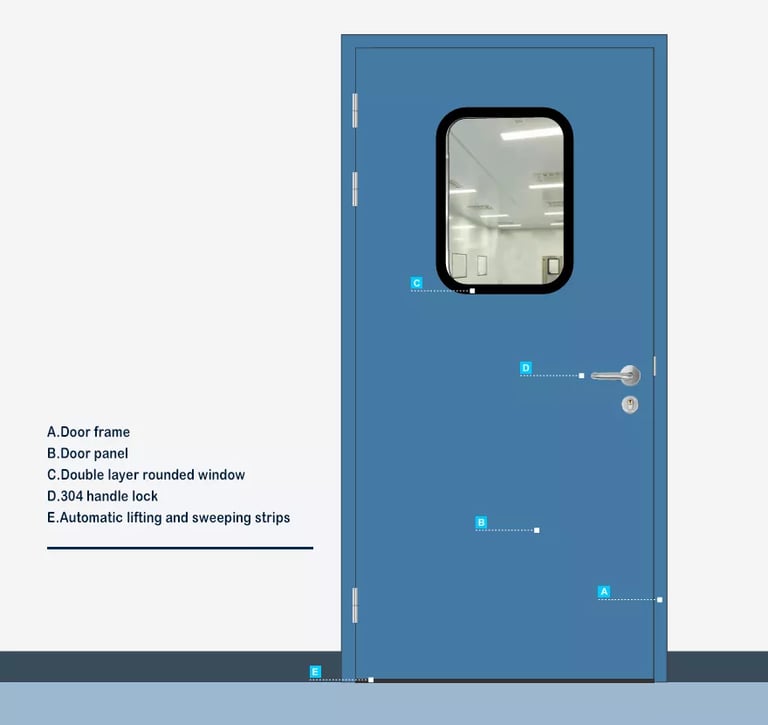

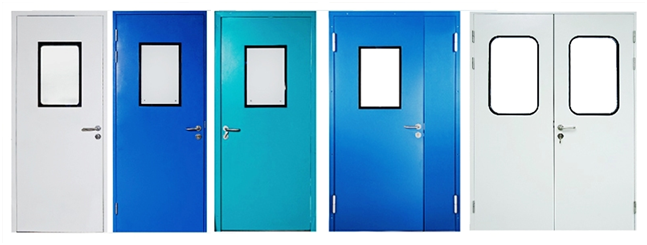

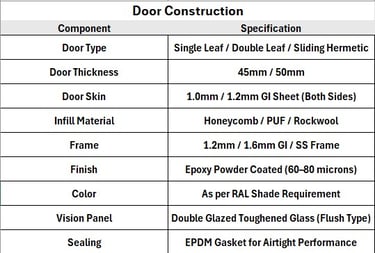

✔ Clean Room Doors
Specially designed doors for pharmaceutical, hospital, and controlled environments.

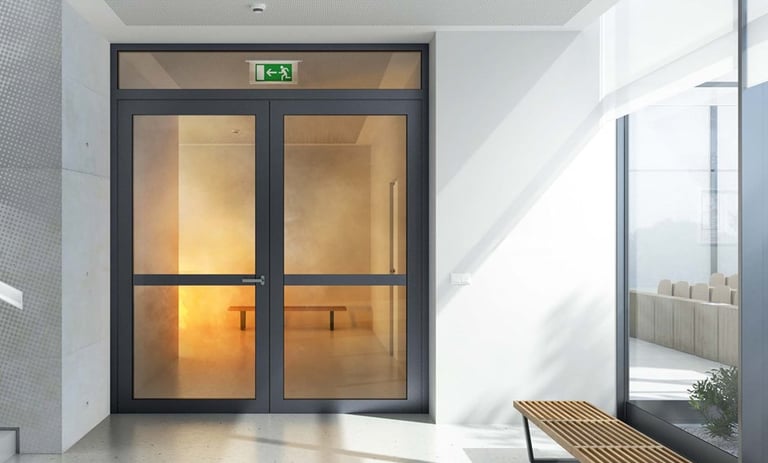

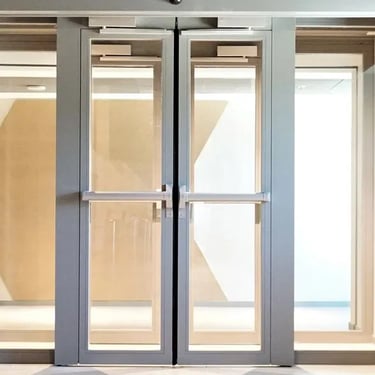

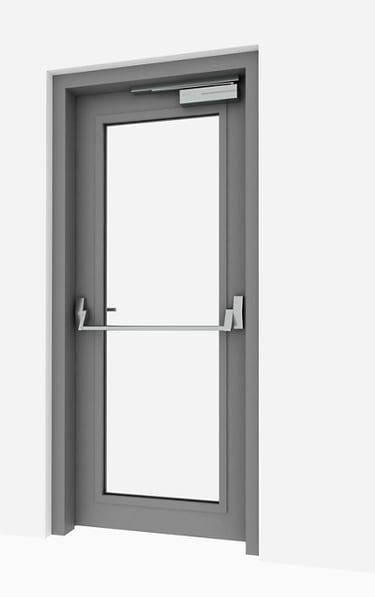

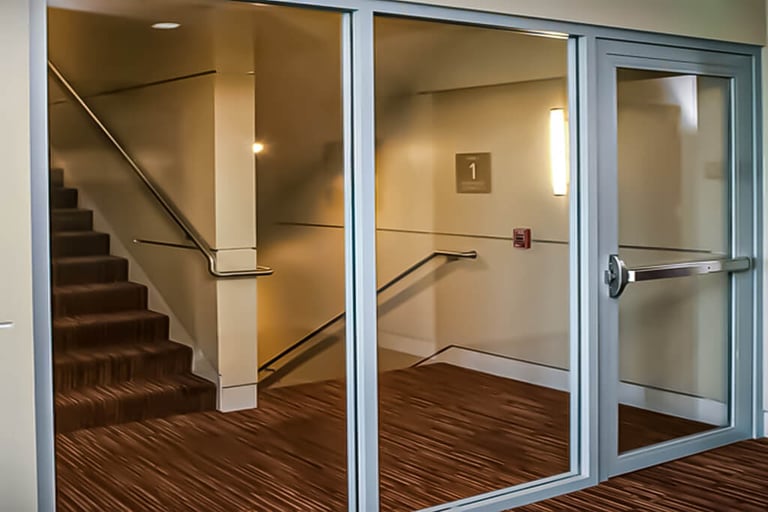

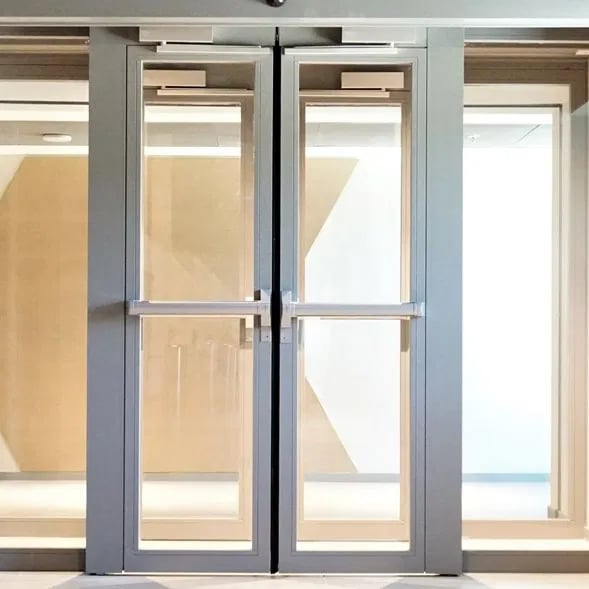

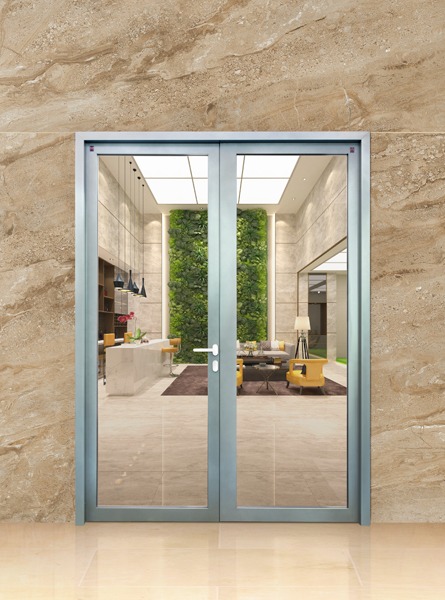

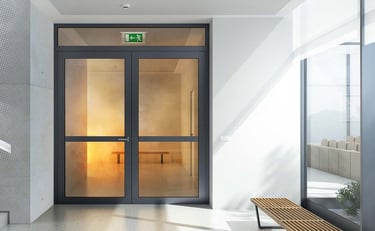

✔ Glass Fire Rated Doors
Modern safety solutions combining transparency with fire protection.
✔ Electric Shaft Doors
Safe and secure shaft doors as per building standards.

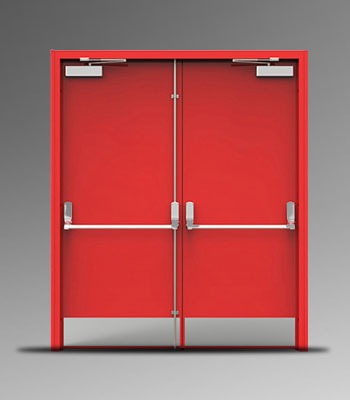

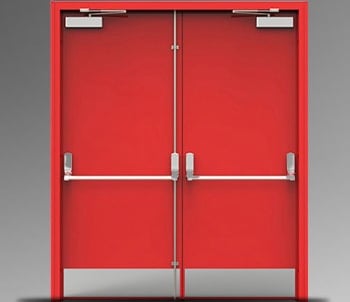

Fire Rated Steel Door

Premium Fire Protection with Certified Safety

Fire Rated Steel Doors are specially designed to prevent the spread of fire and smoke for a specified time period. These doors are widely used in commercial buildings, hospitals, factories, residential towers, and industrial projects.

Key Features

✔ Fire Rating: 60 / 90 / 120 Minutes (as per requirement)
✔ Heavy-duty galvanized steel construction
✔ Rockwool / Honeycomb infill options
✔ Powder coated finish (Any RAL color)
✔ Compatible with fire-rated hardware
✔ Durable, rust-resistant & low maintenance

Applications

  • Staircase & Fire Exit Areas

  • Electrical & Service Rooms

  • Industrial Units

  • Commercial Buildings

  • Hospitals & Institutions

Advantages

  • Controls fire & smoke spread

  • Increases building safety compliance

  • Long service life

  • Strong & impact resistant

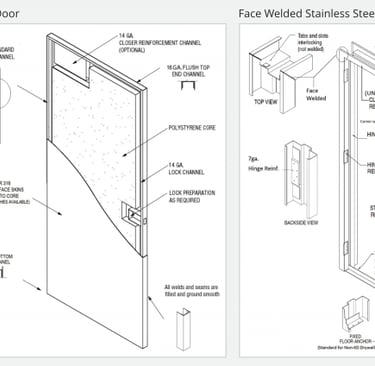

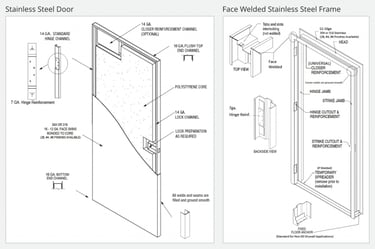

Fire Rated Steel Door – Technical Specifications

Door Leaf Construction

  • Door Thickness: 45 mm / 50 mm / 55 mm (as per fire rating)

  • Face Sheet Thickness: 0.8 mm / 1.0 mm / 1.2 mm GI (as per project requirement)

  • Infill Material:

    • High-density Rockwool (48–64 kg/m³)

    • Ceramic wool (for higher rating)

    • Honeycomb (non-fire rated option)

  • Reinforcement Plates: Provided for hinges, lock, door closer, panic bar

  • Edge Profile: Interlocking seam / folded edge design

Door Frame Construction

  • Frame Material: Galvanized Steel (1.2 mm / 1.6 mm thickness)

  • Frame Profile: Single / Double rebate

  • Anchoring: Holdfast / Anchor fasteners

  • Finish: Powder coated (60–80 microns thickness)

  • Gasket: Intumescent fire & smoke seal

Fire Rating

  • 60 Minutes

  • 90 Minutes

  • 120 Minutes
    (Tested as per relevant IS / International standards as project requirement)

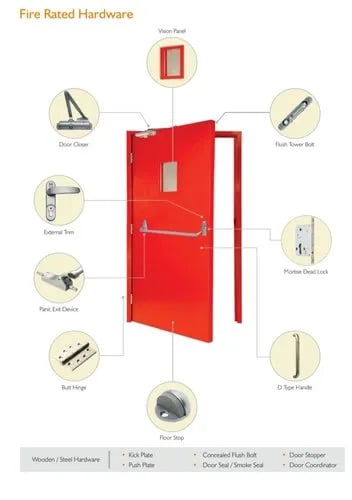

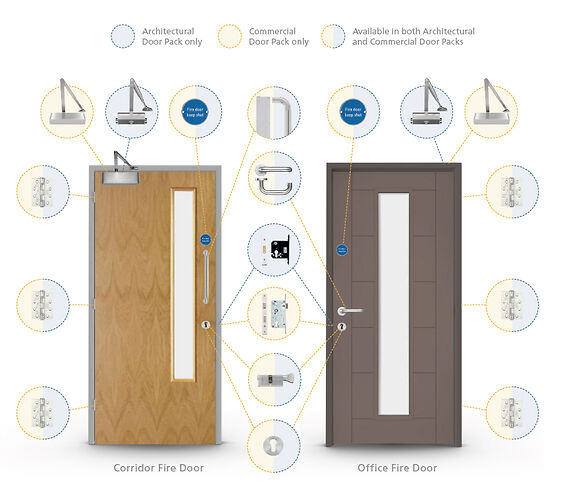

Hardware Compatibility

  • Fire-rated Hinges (3 / 4 Nos.)

  • Mortise Lock (Fire Rated)

  • Door Closer (Overhead / Concealed)

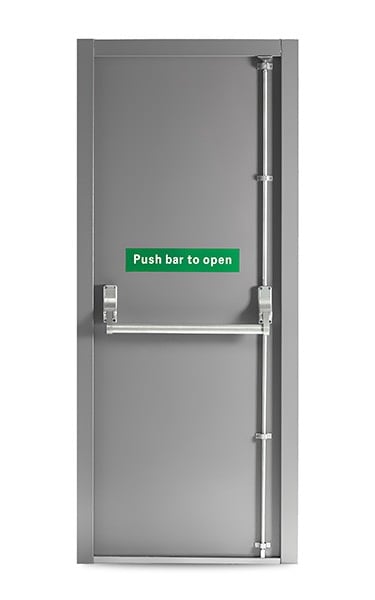

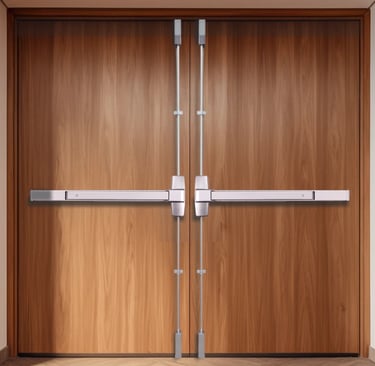

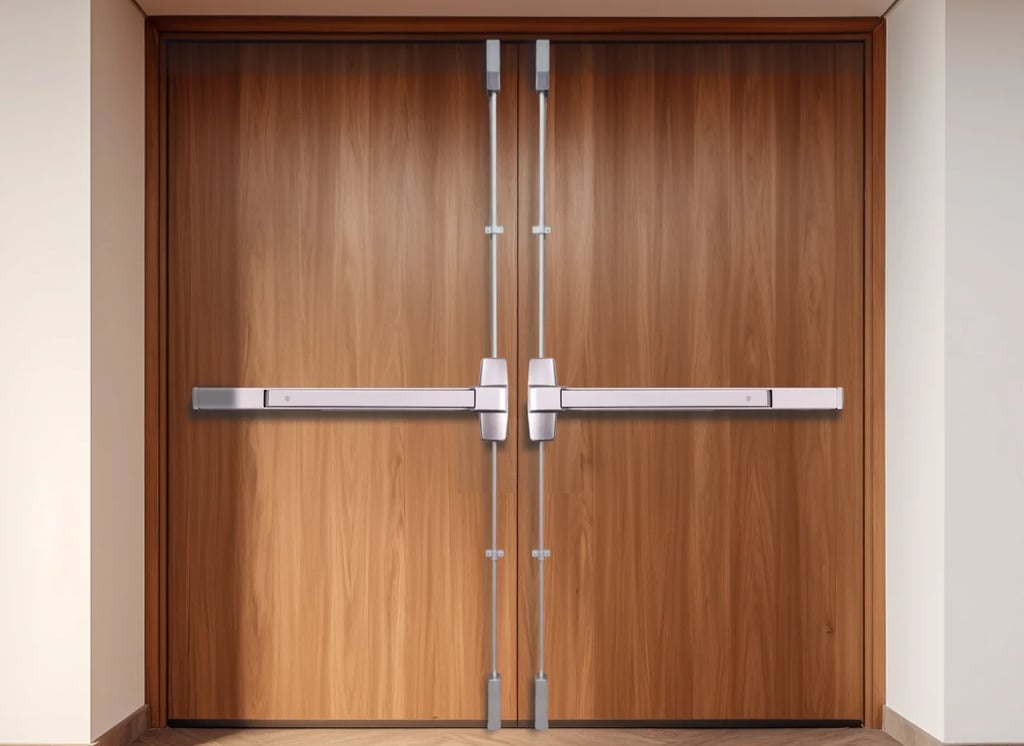

  • Panic Bar (For Fire Exit)

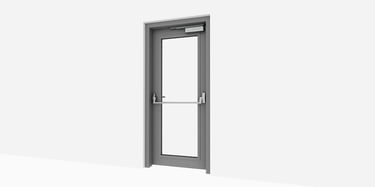

  • Vision Panel with Fire Rated Glass (Optional)

  • Drop Seal (Optional for smoke control)

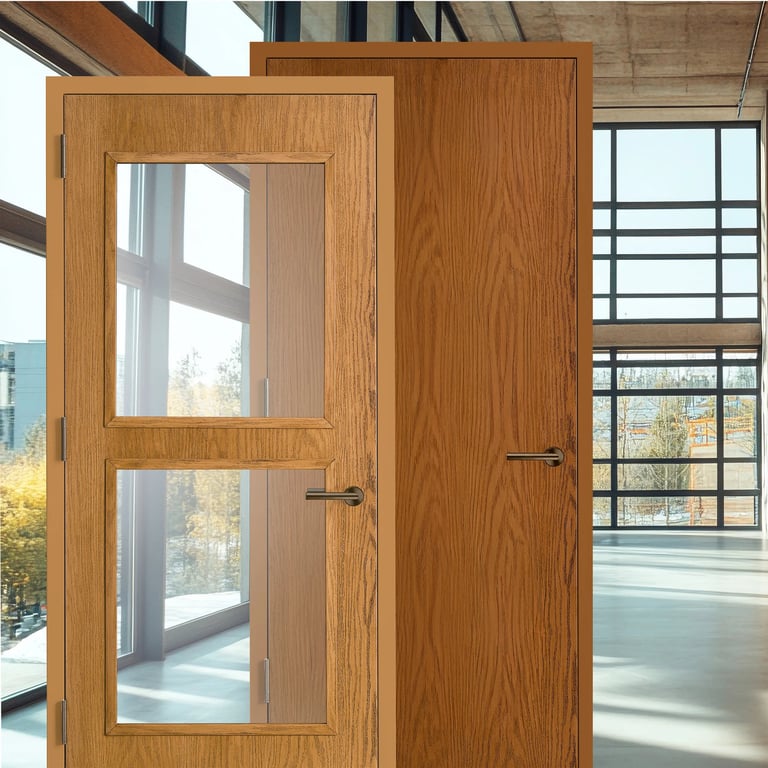

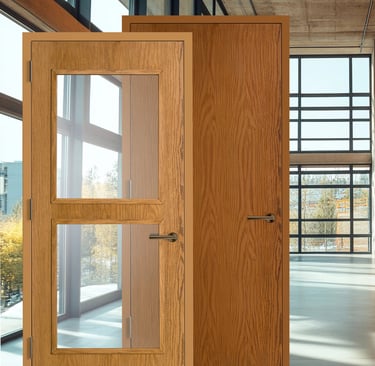

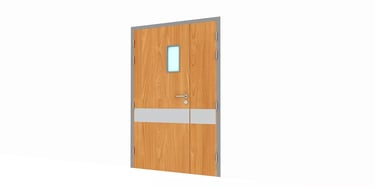

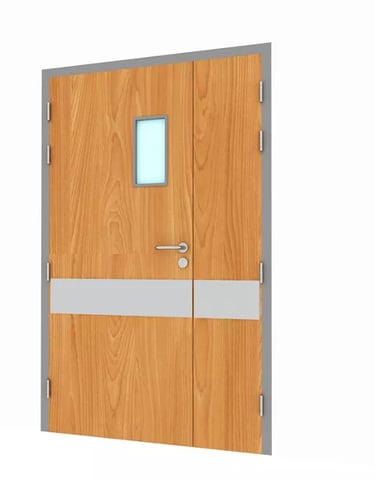

Metal Fire Rated Wooden Finish Doors

Metal Fire Rated Wooden Finish Doors combine the durability and fire resistance of steel with the elegant appearance of natural wood. These doors are ideal for hotels, offices, hospitals, commercial complexes, and residential projects where aesthetics and safety are equally important.

Technical Specifications

Door Leaf Thickness: 45mm / 50mm / 55mm
Face Sheet: 0.8mm / 1.0mm / 1.2mm Galvanized Steel
Infill: High Density Rockwool (Fire Rated Core)
Fire Rating: 60 / 90 / 120 Minutes
Finish: Wood Grain Powder Coating / Heat Transfer Wooden Finish
Frame: GI Steel Frame (1.2mm / 1.6mm)
Gasket: Intumescent Fire & Smoke Seal
Hardware: Fire-rated Hinges, Lock, Door Closer, Panic Bar (if required)

Finish Options

  • Teak Wood Finish

  • Walnut Finish

  • Oak Finish

  • Custom Wood Texture

  • Any RAL Inner Frame Color

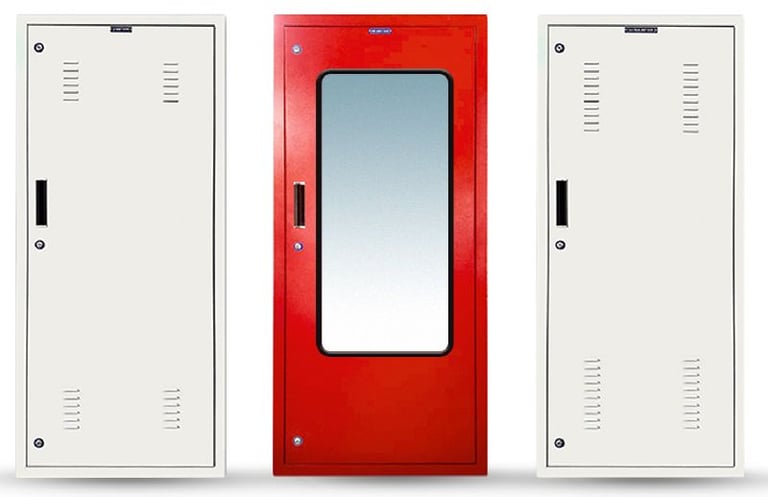

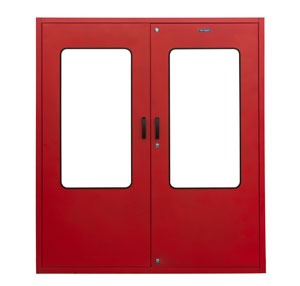

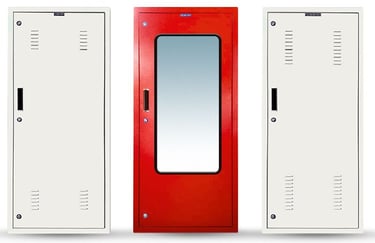

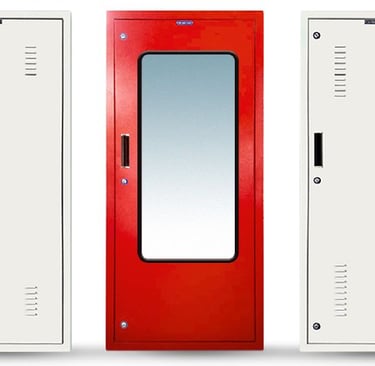

Metal Shaft Doors

Metal Shaft Doors are specially designed for electrical shafts, plumbing shafts, duct shafts, and service areas in residential, commercial, and industrial buildings. These doors provide safe and durable access to maintenance zones.

Technical Specifications

Door Leaf Thickness: 40mm / 45mm
Face Sheet Thickness: 0.8mm / 1.0mm GI
Frame Thickness: 1.2mm / 1.6mm GI
Infill: Honeycomb / Rockwool (if fire rated required)
Finish: Epoxy Polyester Powder Coating (60–80 microns)
Color: Any RAL Shade
Locking: Mortise Lock / Cylindrical Lock / Tower Bolt
Ventilation: With or Without Louvers (as per requirement)

Optional Features

✔ Fire Rated Version (60 / 90 / 120 Minutes)
✔ Louvers for Ventilation
✔ Double Leaf Option
✔ Vision Panel (if required)
✔ SS Hardware

Applications

  • Electrical Shafts

  • Plumbing Shafts

  • Duct Shafts

  • Service Rooms

  • Maintenance Areas

Advantages

✔ Strong & Durable Construction
✔ Corrosion Resistant
✔ Low Maintenance
✔ Secure & Safe Access
✔ Custom Sizes Available
